UVVIS Spectrograph

Table 42 SOXS UV-VIS Spectrograph/CCD Characteristics

Parameter

Value

Detector

e2V CCD44-82

Pixel-Size

15 \(\mu\)m

Array-Size

2048 \(\times\) 4096 px; 30.7 x 61.4 mm

Array-Scale

0.28 arcsec/px

Peak Signal

200,000 \(e^{-}/px\)

Gain

Slow: 0.6 \(\pm\) 0.1 \(e^{-}/ADU\)
Fast: 2 \(\pm\) 0.2 \(e^{-}/ADU\)

Read noise (rms)

Slow: <3 \(e^{-}\)
Fast: <8 \(e^{-}\)

Dark current @ 153K

< 0.00001\(e^{-}/s/px\)

Resolution (\(R\))

3500-7000 (\(\simeq\) 4500 mean)

Wavelength Range

350-850nm

Slit Widths

0.5, 1.0, 1.5, 5.0 arcsec

Slit Height

11 arcsec

Grating Blaze Angle

41\(\degree\)

Orders (quasi)

4

As shown in Fig. 20, the SOXS UV-VIS arm has four dispersing elements, each of which produces a dispersed beam, or pseudo-order (u, g, r, i), which are then all imaged onto the 4k x 2k e2v CCD44-82 device (15\(\mu\)m pixels). Unlike a typical echelle spectrograph, no order curvature exists for any of these four orders [see CAS18, RBAH20, ZanmarSanchezMBA18]. The straight orders do not align precisely along a detector row but are tilted in the dispersion direction by a few pixels. As with the NIR, the slit height in \(12''\). The SOXS UV-VIS spectra arm achieves a resolution \(R > 5000\) , for a 1 arcsec slit, in all four orders (as seen in Fig. 22).

image-20240902153453725

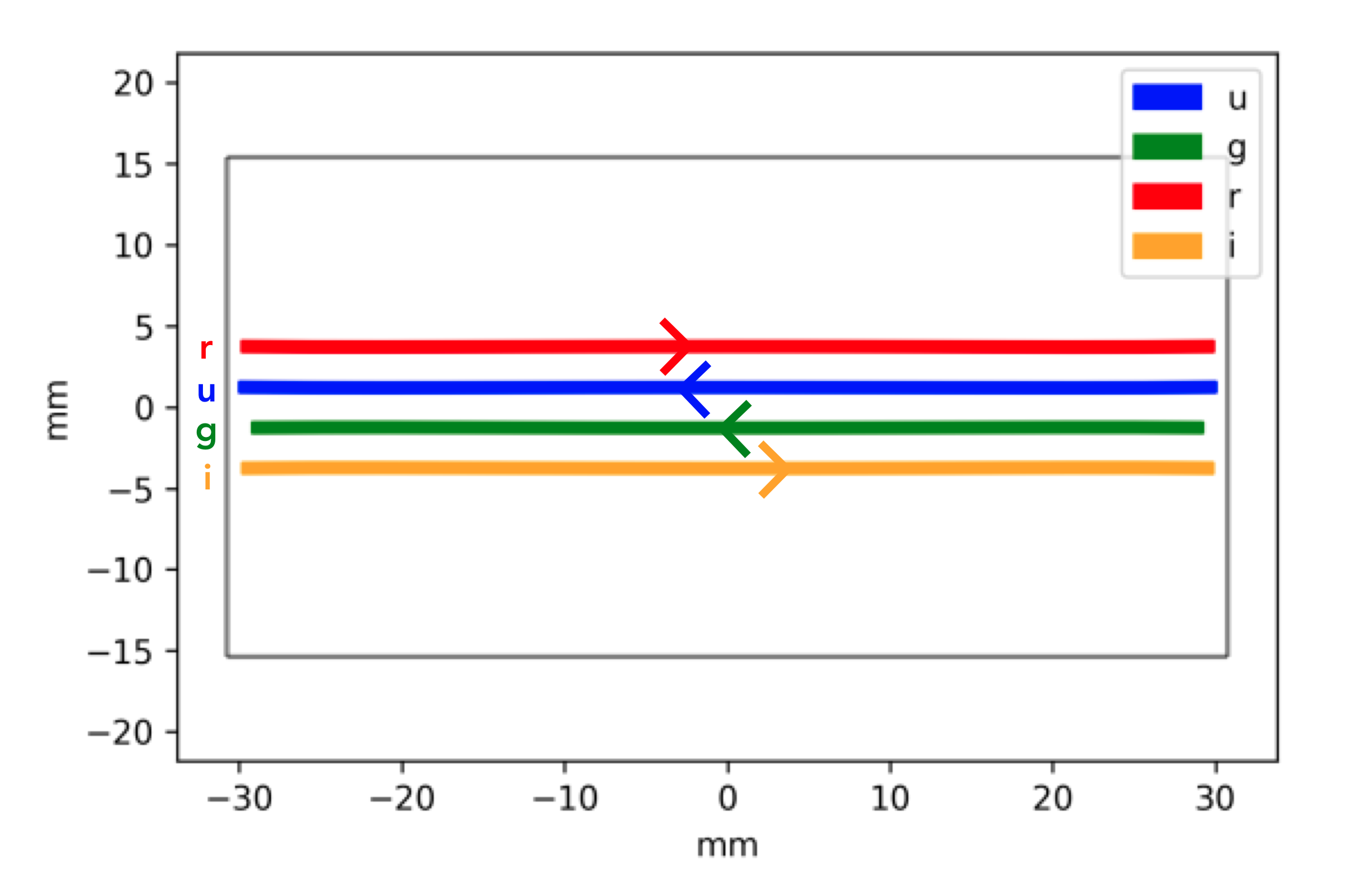

Fig. 20 SOXS UV-VIS spectral format, Figure 4 of Zánmar Sánchez et al. [ZanmarSanchezMBA18] modified to show the dispersion direction for each pseudo-order.

The object trace in these orders is straight, but the skylines are not perpendicular to the object spectrum but are tilted in the cross-dispersion direction (see Fig. 21).

The full UV-VIS wavelength range is 350 – 850nm (providing a 50nm overlap with the NIR arm for cross-calibration), and with the deep-depleted CCD42-82 device, fringing in the red part of the spectrum is below \(5\%\) and, therefore, the pipeline does not perform any fringing corrections. Also, due to the CCD’s low dark current, calibration dark frames are not required. Unlike the NIR arm, the UV-VIS arm will include an ADC.

image-20240903112402170

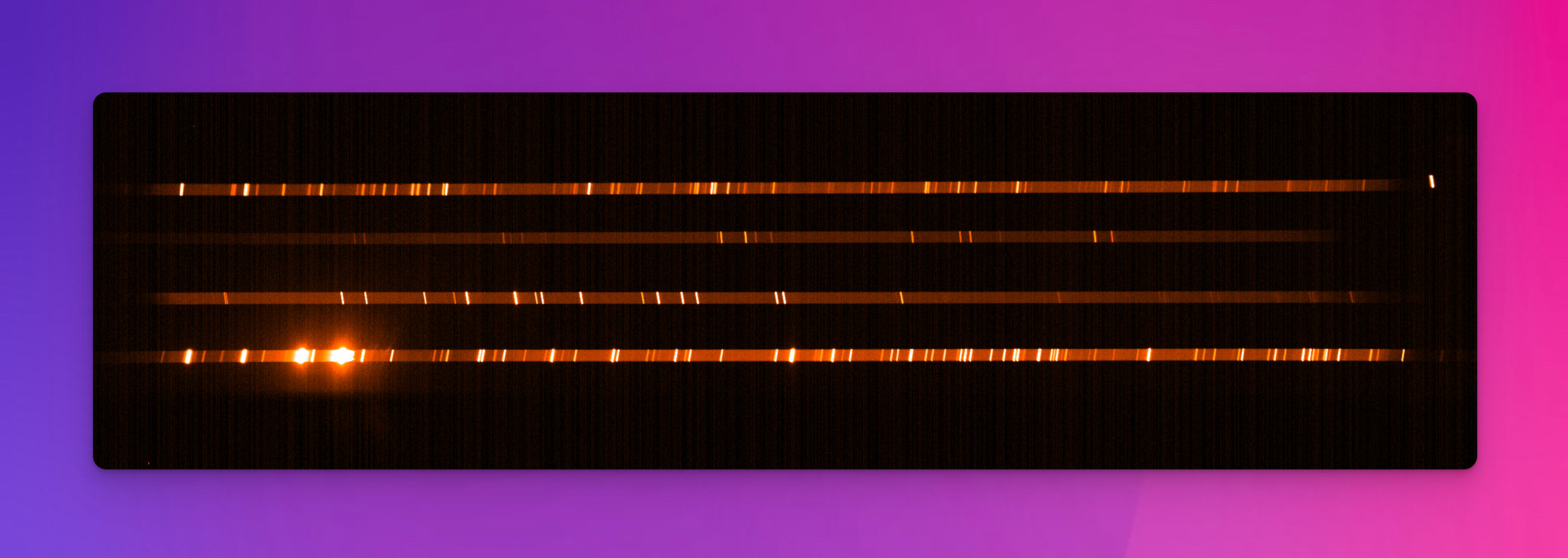

Fig. 21 A SOXS UV-VIS Xenon arc lamp frame. The arc lines are not perpendicular to the dispersion axis, but tilted in the cross-dispersion direction.

image-20250127101442991

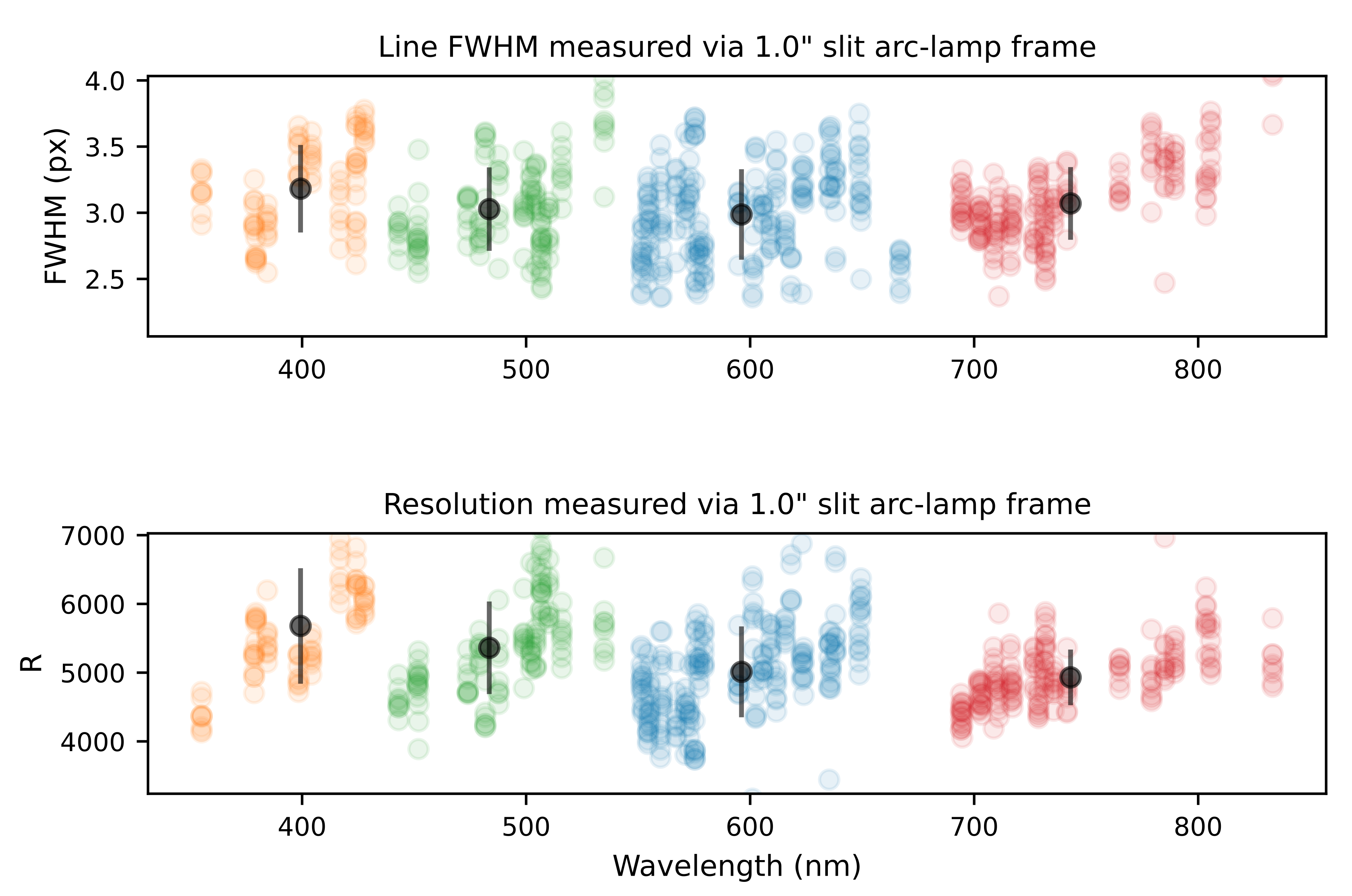

Fig. 22 The spectral resolution of the SOXS UV-VIS spectral arm. This plot is generated during the execution of the soxs_spatial_solution recipe. For selected lines resulting from a QTH-lamp imaged through a 1 arcsec slit, the FWHM is measured at nine locations along the length of the slit. In the top panel, the measured FWHMs are displayed with respect to the wavelengths of the lines. The orange, green, blue and red circles represent the \(u, g, r\) and \(i\) pseudo orders of the spectrograph, and the black circles (with error bars) represent the mean FWHM for the order (and standard deviation). In the bottom panel, the measured pixel scale from the dispersion solution is used to convert FWHM to spectra resolution \(R\). For a 1 arcsec slit, the SOXS UV-VIS detector achieves a resolution \(R > 5000\) in all four orders. The wavelengths of the arc-lines detected range from \(355-833 \mathrm{nm}\).

image-20250129135803707

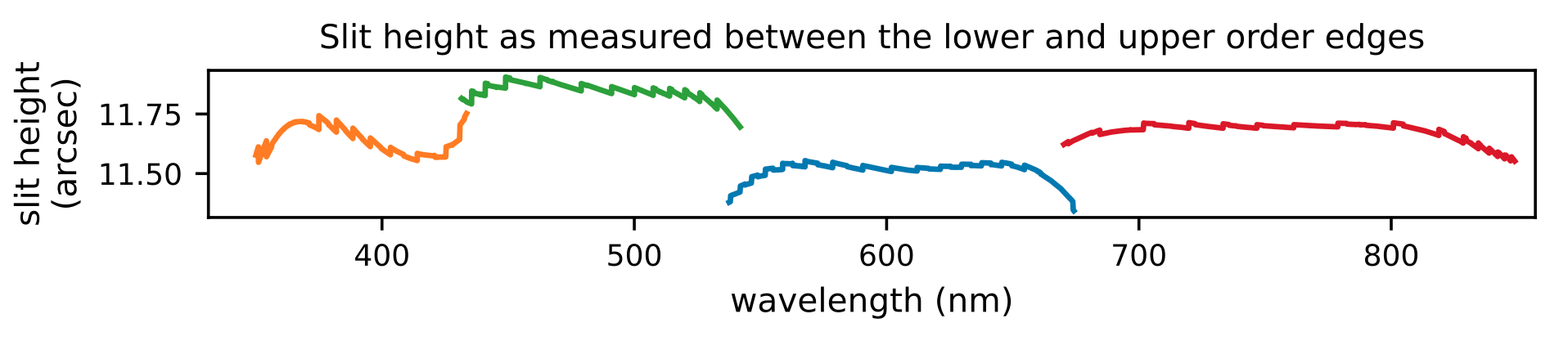

Fig. 23 The UV-VIS slit-height as measured between the edges of each dispersion order on a UV-VIS through-slit flat frame. Each colour in the plot represents an individual dispersion order. The slit height is measured close to the expected \(\sim\)12 arcsecs across all orders.

image-20250129135813991

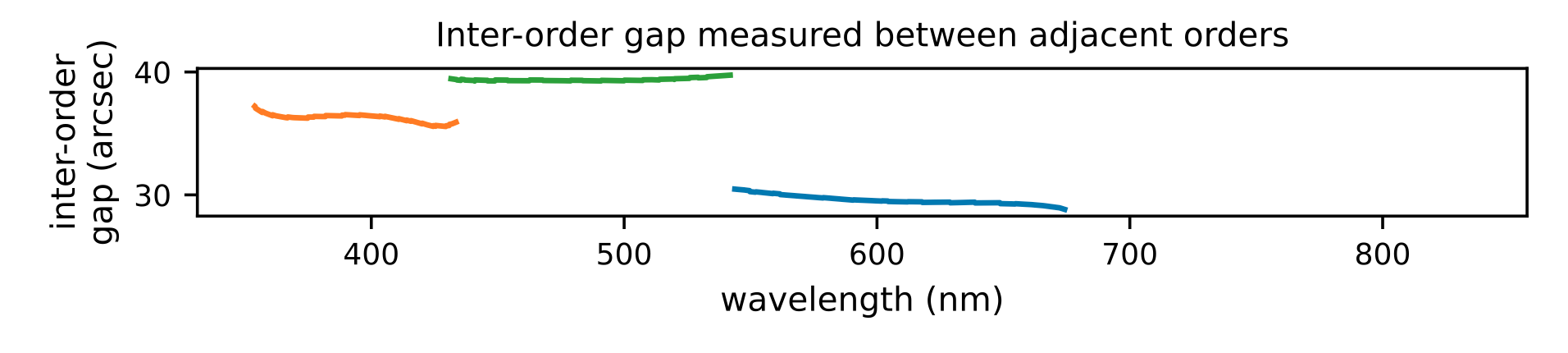

Fig. 24 The UV-VIS inter-order gaps as measured between the edges of adjacent dispersion orders on an UV-VIS through-slit flat frame. Each colour in the plot represents an individual dispersion order. The minimum inter-order gap is \(\sim\)28 arcsecs.
