Reducing Data with a Single Command

In most use cases, you will want to reduce all raw frames within your workspace with a single command. This allows you to run the pipeline at a high level without worrying about individual recipe commands.

To do this, from the root directory of your workspace, run:

soxspipe reduce all .

Once running, the reduce command will execute the pipeline recipes (in order) and generate new data products. During execution, the pipeline writes useful logs to the terminal, providing a status of data-reduction progress. These logs are also written to individual recipe log files. If, at any stage, a recipe fails to create a data product, the pipeline will attempt to pivot to use the next-best available product. The reduce command stops when all data within the workspace has been reduced.

During runtime, recipes write plots and files to a qc (Quality Control) folder within the workspace. Each recipe writes to its own named directory (see Fig. 10).

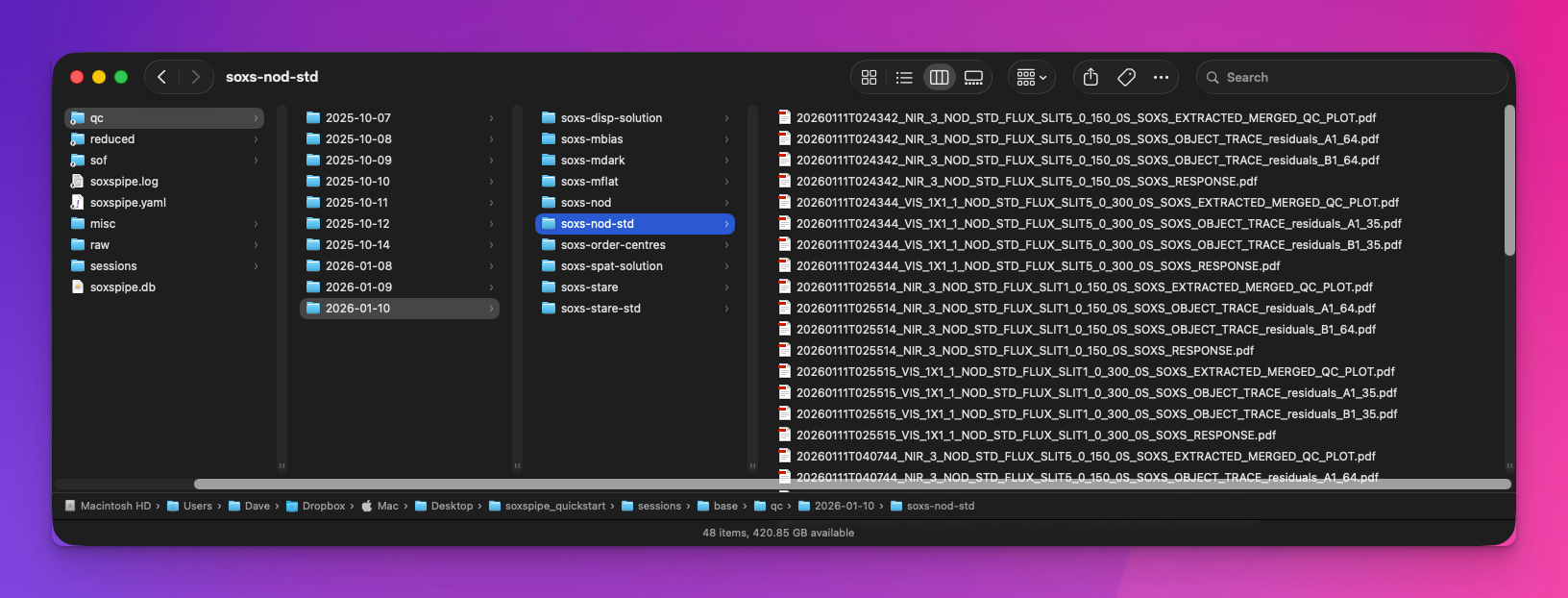

image-20260416173736260

Fig. 10 QC files and plots are written to the workspace qc folder.

Each recipe generates products written to the products folder within the workspace, with each recipe writing to its own directory. Recipe log files are also written to the products folder adjacent to their associated products.

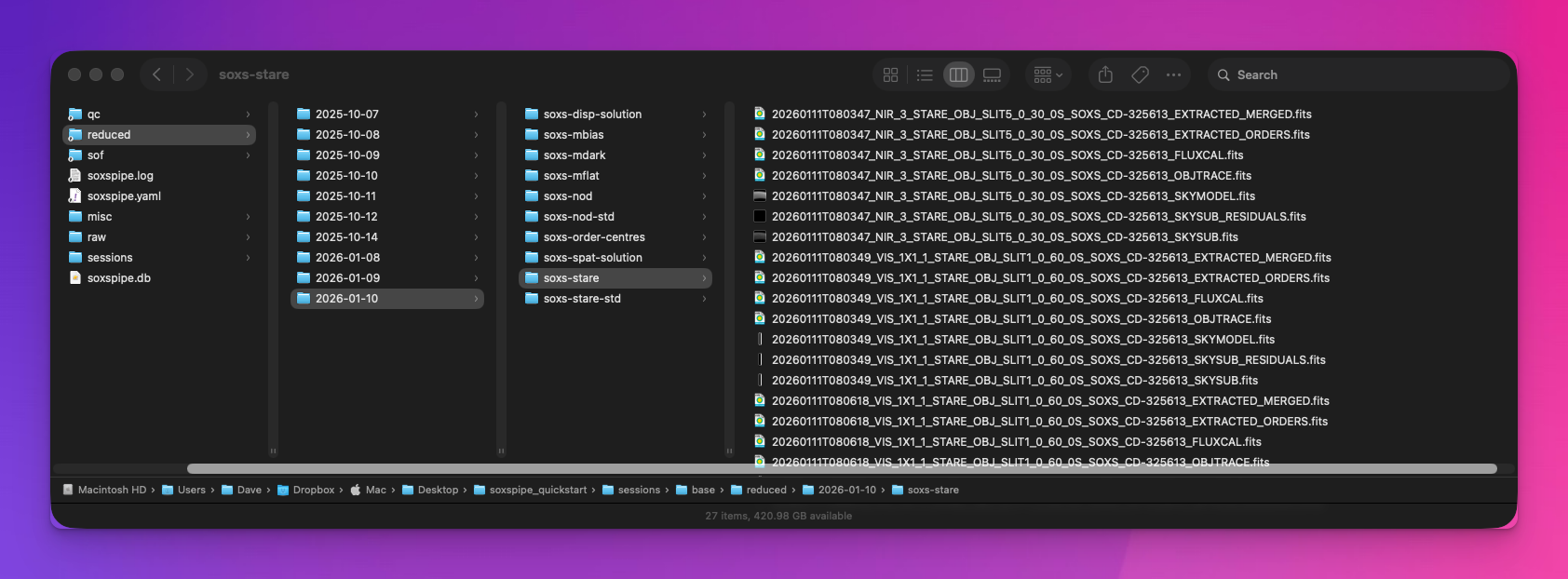

image-20260416173519113

Fig. 11 Recipe products, files and plots are written to the workspace reduced folder.

Speed up Reductions with Multiprocessing

If you have a large dataset, you can dramatically speed up reductions by using the --multiprocess (-m) flag. In this mode, the reduce command will reduce recipes in parallel. Instead of seeing each recipe’s output logs in the terminal, the user will see a progress bar showing the pipeline’s progress as it reduces all the sof files for each recipe.

To do this, from the root directory of your workspace, run:

soxspipe reduce all . -m

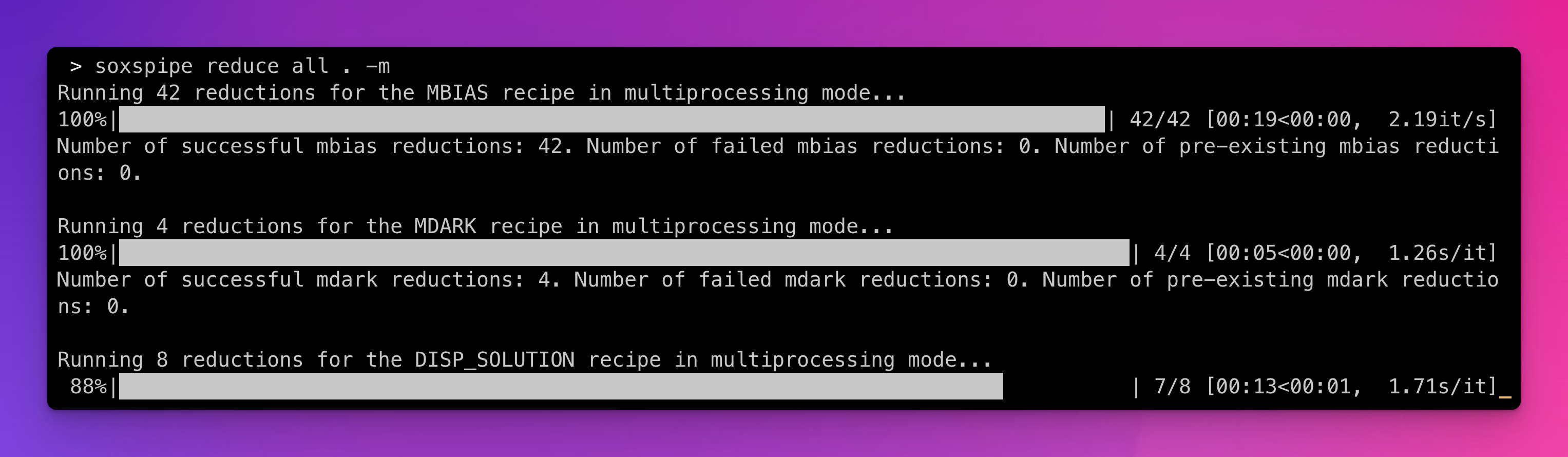

image-20260410181117526

Fig. 12 In multiprocessing mode, recipe sof files are reduced in parallel, and the user is presented with a progress bar for each recipe.

Targetting a Science SOF file for Reduction

In addition to reducing an entire directory of data, soxspipe can target specific science SOF files. In this mode of operation, the pipeline will only reduce the calibration data needed to reduce the targeted science SOF file. To list all of the science SOF files in a workspace, run the command:

soxspipe list sof .

Then select an SOF file to target, and run the reduce command with the sof sub-command, for example:

soxspipe reduce sof 20260111T080805_VIS_1X1_1_NOD_OBJ_SLIT5_0_60_0S_SOXS_CD-325613.sof

As with reducing data with the all sub-command, if a recipe fails to create a required calibration product, the pipeline will attempt to pivot to use the next-best available product (as long as other calibration data is available in the workspace).
