soxs_mflat

The soxs_mflat recipe creates a single normalised master-flat frame used to correct for non-uniformity in response to light across the detector plane. Hot and dead pixels are also detected and added to a bad-pixel mask. Finally, the echelle order edges are detected and fitted with a polynomial model.

Sources of this non-uniformity include: Varying pixel sensitivities. Obstructions in the optical path (e.g., dust or pollen grains). Vignetting at the edges of the detector. A flat frame is ideally an image taken with uniform illumination across the detector’s light-collecting pixels. This evenly exposed image can be used to identify irregularities in the detector’s response.

Usage

The soxs_mflat recipe can be run with the following convention:

soxspipe [-Vx] mflat <inputFrames> [-o <outputDirectory> -s <pathToSettingsFile>]

To rerun a previously executed soxs_mflat recipe, you can find the execution command at the end of the recipe log file (found in the workspace products/soxs_mflat directory). Use the -x flag to overwrite the product files if they already exist. For example, from the root of your workspace, you would run a command like:

soxspipe mflat sof/20251012T111444_VIS_2X2_3_MFLAT_QTH_SLIT0_5_20_0S_SOXS.sof -s ./sessions/base/soxspipe.yaml  -x

To adjust the default settings for the soxs_mflat recipe, open the soxspipe.yaml file referenced in the command above in a text editor, navigate to the soxs_mflat dictionary, save the file and rerun the recipe command. The settings’ descriptions can be found in Table 17.

Product files are written in the products/soxs_mflat, and QC plots are in the qc/soxs_mflat workspace directory. A report of the product files, QC plots and metrics is also printed to the terminal. The QC metrics calculated for soxs_mflat are found in soxs_mflat_qc and a typical QC plot in soxs_mflat_qc_fig.

Reduction Tips

If this recipe fails during the fitting of the order edge, the first parameter to adjust is poly-fitting-residual-clipping-sigma. Try reducing this to 3-5 sigma and rerun the recipe to see if a fit is found. If the fit still fails, next try and increase the slice-width-for-edge-detection to 5-9 pixels to give the code a better chance of detecting the order-edges.

If the previous adjustments have not helped, you can slowly reduce min-percentage-threshold-for-edge-detection and/or increase max-percentage-threshold-for-edge-detection by 2-3 percent and attempt a refit.

You can also try adjusting the polynomial fitting orders in order-deg and disp-axis-deg. However, please be advised the pipeline itself will dynamically adjust these values if they fail to fit the default set. It will slowly reduce the orders and refit until it finds a fit or decides a fit can not be found (after five iterations of decreasing the orders).

Parameters

Table 17 The soxs_mflat recipe parameters.

Parameter	Description	Type	Entry Point	Related Util
subtract_background	fit and subtract the intra-order background light	bool	settings file	subtract_background
stacked_clipping_sigma	the sigma clipping limit used when stacking frames into a composite frame	float	settings file	clip_and_stack
stacked_clipping_iterations	the maximum sigma-clipping iterations used when stacking frames into a composite frame	int	settings file	clip_and_stack
centre_order_window	size of the window (in pixels) used to measure flux in the central band to determine median exposure	int	settings file	-
slice_length_for_edge_detection	length of the cross_dispersion slices used to determine order edges	int	settings file	detect_order_edges
slice_width_for_edge_detection	width of the cross_dispersion slices used to determine order edges	int	settings file	detect_order_edges
min_percentage_threshold_for_edge_detection	minimum value flux can drop to as percentage of central flux and be counted as an order edge	int	settings file	detect_order_edges
max_percentage_threshold_for_edge_detection	maximum value flux can climb to as percentage of central flux and be counted as an order edge	int	settings file	detect_order_edges
disp_axis_deg	degree of y-component of global polynomial fit to order edges	int	settings file or command-line	detect_order_edges
order_deg	degree of echelle order number component of global polynomial fit to order edges	int	settings file or command-line	detect_order_edges
poly_fitting_residual_clipping_sigma	sigma clipping limit when fitting global polynomial to order edges	float	settings file	detect_order_edges
poly_clipping_iteration_limit	maximum number of clipping iterations when fitting global polynomial to order edges	int	settings file	detect_order_edges
low_sensitivity_clipping_sigma	pixels with a flux less than this many sigma (mad) below the median flux level added to the bp map	float	settings file	-
scale_d2_to_qth	scale d2 to qth lamp flats when stitching	bool	settings file	-
background_subtraction: bspline_deg	degree of bsplines used to fit the inter-order background (if subtract_background == True)	int	settings file	subtract_background
background_subtraction: gaussian_blur_sigma	Standard deviation of Gaussian kernel used to smooth background image (if subtract_background == True)	int	settings file	subtract_background

Input

Table 18 Input files for the soxs_mflat recipe. The files are typically passed to the soxs_mflat recipe via a set-of-file (sof) file listing one file per line.

Data Type	Content	Related OB	Min. Frame Count
FITS image	Raw flats frames (exposures with identical exposure time, slit-width and detectors readout parameters).	SOXS_slt_cal_NIRLampFlat, SOXS_slt_cal_NIRLampFlatAtt, SOXS_slt_cal_VISLampFlat, SOXS_slt_cal_VISLampFlatAtt	5
FITS Image	A master bias Frame (UV-VIS only)	-	-
FITS Image	A master dark frame or lamp-off frames with identical exposure times to the lamp-on flat frames (NIR only)	-	-
FITS Table	An order location table containing coefficients to the polynomial fit describing the order centre locations.	-	-

Output

Table 19 Output files for the soxs_mflat recipe and their respective ESO PRO keywords (NIR and VIS).

Label	Content	Data Type	PRO CATG	PRO TYPE	PRO TECH
ORDER LOC	table of coefficients from polynomial fits to order locations	FITS	ORDER_TAB_<ARM>	REDUCED	ECHELLE,SLIT
MFLAT	master spectroscopic flat frame	FITS	MASTER_FLAT_<ARM>	REDUCED	IMAGE
ORDER LOC RES	visualisation of goodness of order edge fitting	PDF	-	-	-
BKGROUND	Fitted intra-order image background	PDF	-	-	-

Table 20 Output files for the soxs_mflat recipe for Xshooter UVB arm.

Label	Content	Data Type	PRO CATG	PRO TYPE	PRO TECH
ORDER LOC DLAMP	table of coefficients from polynomial fits to order locations	FITS	ORDER_TAB_<ARM>	REDUCED	ECHELLE,SLIT
MFLAT DLAMP	UVB master spectroscopic flat frame (DLAMP)	FITS	MASTER_FLAT_<ARM>	REDUCED	IMAGE
ORDER LOC QLAMP	table of coefficients from polynomial fits to order locations	FITS	ORDER_TAB_<ARM>	REDUCED	ECHELLE,SLIT
MFLAT QLAMP	UVB master spectroscopic flat frame (QLAMP)	FITS	MASTER_FLAT_<ARM>	REDUCED	IMAGE
ORDER LOC	table of coefficients from polynomial fits to order locations	FITS	ORDER_TAB_<ARM>	REDUCED	ECHELLE,SLIT
MFLAT	UVB master spectroscopic flat frame	FITS	MASTER_FLAT_<ARM>	REDUCED	IMAGE
ORDER LOC RES DLAMP	visualisation of goodness of order edge fitting	PDF	-	-	-
BKGROUND DLAMP	Fitted intra-order image background DLAMP	PDF	-	-	-
ORDER LOC RES QLAMP	visualisation of goodness of order edge fitting	PDF	-	-	-
BKGROUND QLAMP	Fitted intra-order image background QLAMP	PDF	-	-	-
ORDER LOC RES	visualisation of goodness of order edge fitting	PDF	-	-	-

QC Metrics

Table 21 Quality Control metrics calculated in the soxs_mflat recipe.

Label	Description	Unit	Acceptable Range
COLDPIX FRAC	Fraction of colf pixels		-
INNER ORDER PIX MEAN	Mean inner-order pixel value	electrons	VIS: [0.9,1.1], NIR: [0.9,1.1]
INNER ORDER PIX SUM	Sum of all inner-order pixel values	electrons	VIS: [100000,700000], NIR: [1000000,1200000]
COLDPIX NUM	Number of cold pixels		VIS: [0.0,0.01], NIR: [0.0,0.01]
N LOW SENS	Number of low-sensitivity pixels found in master flat	pixels	-
ORDEXP10	10th percentile inter-order flux	electrons	-
ORDEXP50	50th percentile inter-order flux	electrons	-
ORDEXP90	90th percentile inter-order flux	electrons	VIS: [10000,150000], NIR: [30000,60000]
X RES MAX	Maximum residual in order edge fit along x-axis	pixels	-
X RES MIN	Minimum residual in order edge fit along x-axis	pixels	-
X RES SD	Std-dev of residual order edge fit along x-axis	pixels	VIS: [0,0.37], NIR: [0,0.2]

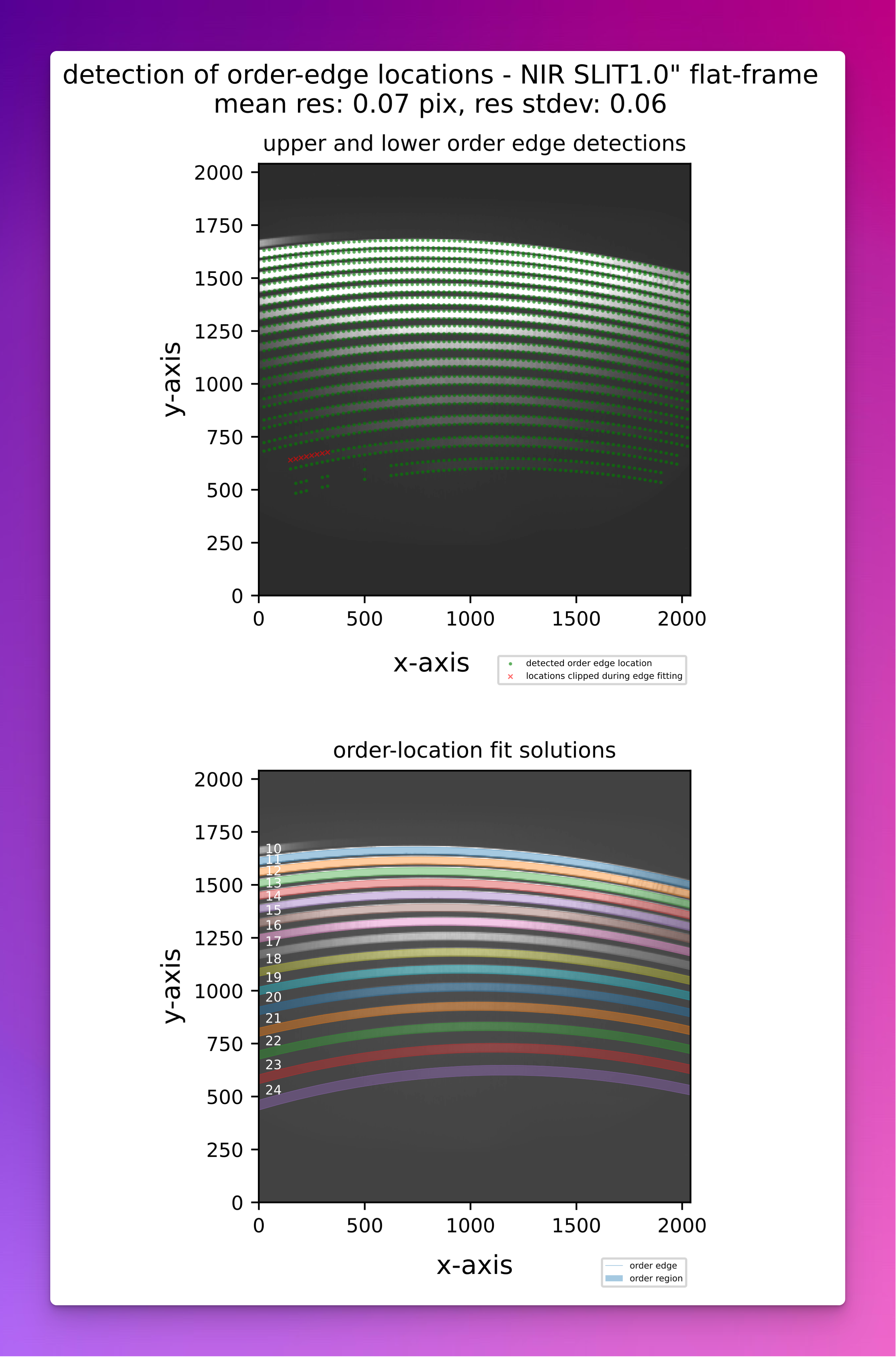

Fig. 15 A QC plot resulting from the soxs_mflat recipe (SOXS NIR). The top panel shows the upper and lower-order edge detections registered in the individual cross-dispersion slices in a SOXS NIR flat frame. The bottom panel shows the global polynomial fits to the upper and lower-order edges, with the area between the fits filled with different colours to reveal the unique echelle orders across the detector plane.
